Color
IR Camera Weather Proof
Key Features
- Weather proof (IP57) design for both in/outdoor
use
- Unique shelter design
- Long product operation life with auto IR trigger
on/off -- 12 infrared LED
- Effective range: around 10 Meters
- Lowest power consumption with high reliabiliy
- Bracket included
- Professional performanc for both day and night use
|
| |
|
|
[放大] |
|
1/3"
CCD Colour Video Camera
Key Features
- 1/3-inch IT CCD with 290,000 effective pixels
- Auto White Balance Tracking (ATW) and one-touch
Auto White Balance (AWB)
- Auto White Balance adjustment range from 2,300°K
to 10,000°K
- Automatic Gain Control (Max. 26 db)
- S/N ratio 50 db (AGC off)
- Back-light Compensation
- Automatic Electronic Shutter
- DC iris lens connection
- AC 24V power operation
|
| |
|
|
[放大] |
|
Samsung Dome Camera
Key Features
- 1/3-Inch CCD
- 540 TV Lines Resolution
- Day/Night Capabiity
- High Sensitivity of 0.00009 Lux
- Samsung Digital Noise Reduction Technology
- 2.5~6.0mm/2.9~10mm Varifocal Lens
- 3-Axis Rotating Structure
|
| |
|
|
[放大] |
|
Indoor Series Model
Key Features
- 1/4 Inch Sony Exview HAD CCD, 480TVL
- Built-in Auto Focus/Auto Iris
- Max. 312x Zoom (26x Optical/12x Digital)
- TDN(ICR), DSS, OSD
- Speed: Pan(360/sec), Swing(180/sec)
- Angular Travel: Pan(Endless 360), Tilt(90)
- 128 presets, 8 swing, 4 patterns, 8groups
- Privacy Zone, Auto Flip, Auto Parking
- RS-485(Pelco-D/Pelco-P Selectable)
- 24VAC(Line-lock) Single Voltage
|
| |
|
|
[放大] |
|
Outdoor Series Model
Key Features
- 1/4 Inch Sony Exview HAD CCD, 480TVL
- Built-in Auto Focus/Auto Iris
- Max. 312x Zoom (26x Optical/12x Digital)
- TDN(ICR), DSS, OSD
- Speed: Pan(360/sec), Swing(180/sec)
- Angular Travel: Pan(Endless 360), Tilt(90)
- 128 presets, 8 swing, 4 patterns, 8groups
- Privacy Zone, Auto Flip, Auto Parking
- RS-485(Pelco-D/Pelco-P Selectable)
- 24VAC(Line-lock) Single Voltage
|
| |
|
|
| DVR XRS-2000 Series |
| XRS-2004M |
|
 |
| XRS-2004 |
|
 |
|
| Type |
|
Embedded DVR |
| HDD |
|
Max. 3 HDD |
| Output |
|
VGA, Analogue Output, Spot |
| OS |
|
RTOS |
| Video In |
|
4CH |
| Audio In/Out |
|
4ch in / 1ch out, 2way audio |
| Backup |
|
USB, CD-RW, DVD-RW |
| Display |
|
120FPS(NTSC)/100FPS(PAL) |
| Recording Speed |
|
704X480 : 30fps, 704X240 : 60fps, 352X240 : 120fps / (NTSC
)
704X576 : 25fps, 704X288 : 50fps, 352X288 : 100fps / (PAL) |
| Resolution |
|
704X480, 704X240, 352X240(NTSC)
704X576, 704X288, 352X288(PAL) |
| Compression |
|
MPEG4 |
| Average file size |
|
3-5 Kbyte (352x240, 352x288)
5-10 Kbyte (704x240, 704x288)
6-16 Kbyte (704x480, 704x576) |
| Recording mode |
|
Manual, Schedule (Motion, Sensor, Time) |
| Sensor/Relay |
|
4CH Sensor In / 1CH Relay out |
| PTZ control port |
|
RS-485 interface |
| Network |
|
10/100-Base-TX, RJ-45 / Live Monitoring, Remote Playback & File saving |
| Remote Transmission |
|
8 levels |
| Remote Control |
|
Remote recording, Search, Setup, backup |
| Control type |
|
IR Remote Control / Jog Shuttle |
| ControlStorage Temp/Humidity |
|
5°C to 50°C |
| Operation Temp/Humidity |
|
5°C to 50°C |
| Power |
|
100VAC-240VAC, 1/0.5A, 60/50Hz |
| Dimension |
|
Dimension360(H)x360(D)X66(D)mm |
| |
|
|
JA-2MECD Hands - free color Video PanTilt
PanTilt Color Hands-free Communication and Motion-sensor camera Integration
- Two Color PanTilt Camera door stations, three inside monitor stations (4" LCD)
- Motion-sensor camera (max.2)
- Built-in picture memory (JA-2MECD only)
- Surveillance mode SET through sensor-cameras.
Activates monitor and internal alarming (& picture save in JA-2MECD)
- Total hands-free communicaiton, auto-voice actuation
- Instant voice call-in with image
- Press-to-talk operation available
- White LED illuminator turns on in low-light conditions
- All Call for internal communicaiton
- Transfer of door station call to other inside stations

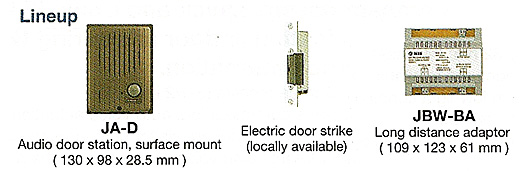

- Optional video (JA-2HCD) or audio (JA-2SD) sub stations
- Audio door station in lieu of JA video door station
- Talk LED lights inred while speaking
- Visual monitoring with audio through all cameras
- Two door release contacts for selective control
- Options:
- Foot talk switch -RY-3DL for larger door releases locally available
- Manual Talk switch restriction
- Video Output to video device (NTSC)
|
| |
|
|
|
|
|
